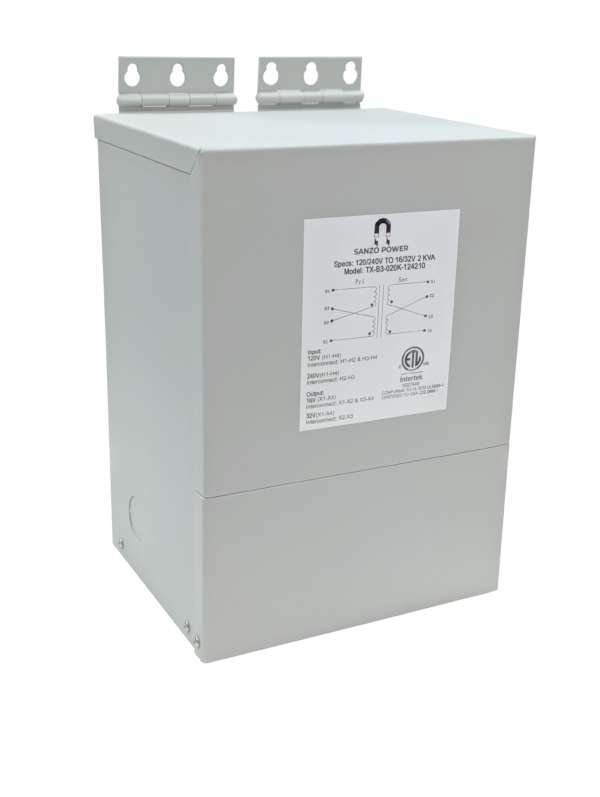

2 kVA Buck-Boost Base Transformer, 120/240V × 16/32V, Single Phase
$696.70
Sanzo Power 2 kVA single-phase buck-boost base transformer — 120/240V × 16/32V dual windings. Resin-encapsulated, NEMA 3R, wall mount, 115°C rise, cETLus. For small voltage corrections in single- or three-phase buck-boost banks.
✔ In Stock: 47
Compare with similar items
 |  |  |  |  |  | |
| Item | This item — Sanzo Power TX-B3-020K-124210 | Acme Electric T113075 | Jefferson Electric 416-1271-000 | Hammond Power Solutions Q002ESCF | Federal Pacific K1XGF16-2 | SolaHD HS20F2A |
| Price | $696.70 | $1,289.00 | $1,240.00 | $1,338.00 | $1,310.00 | $1,359.00 |
| Availability | ✔ In Stock: 47 | Ships in 10-14 weeks | Ships in 8-12 weeks | Ships in 10-14 weeks | Ships in 12-16 weeks | Ships in 12-16 weeks |
| Add to Cart | View | View | View | View | View | |
| Brand | Sanzo Power | Acme Electric | Jefferson Electric | Hammond Power Solutions | Federal Pacific | SolaHD |
| Capacity | 2 kVA | — | — | — | — | — |
| Primary Voltage | 120/240V | 120/240V | 120/240V | 120/240V | 120/240V | 120/240V |
| Secondary Voltage | 16/32V | 16/32V | 16/32V | 16/32V | 16/32V | 16/32V |
| Phase | Single Phase | Single-Phase | Single-Phase | Single-Phase | Single-Phase | Single-Phase |
| Enclosure | NEMA 3R | — | — | — | — | — |
| Listing | cETLus Listed | — | — | — | — | — |
| Max Primary OCP | 25A | — | — | — | — | — |
| Frequency | 50/60 Hz | — | — | — | — | — |
| Temperature Rise | 115°C | — | — | — | — | — |
| Insulation | 180°C | — | — | — | — | — |
| Configuration | Resin-Encapsulated | — | — | — | — | — |
| Taps | None | — | — | — | — | — |
| Mount | Wall | — | — | — | — | — |
| Transformer Type | Buck/Boost | — | — | — | — | — |
Specifications
| Brand | Sanzo Power |
| Capacity | 2 kVA |
| Primary Voltage | 120/240V |
| Secondary Voltage | 16/32V |
| Phase | Single Phase |
| Max Primary OCP | 25A |
| Conduit Knockout | 3/4" NPT |
| Frequency | 50/60 Hz |
| Temperature Rise | 115°C |
| Insulation | 180°C |
| Configuration | Resin-Encapsulated |
| Part # | TX-B3-020K-124210 |
| Taps | None |
| Winding Material | Aluminum |
| Weatherproof Rating | NEMA 3R |
| Enclosure Material | Steel |
| Finish Color | ANSI 70 Light Grey |
| Certification Listing | cETLus |
| Transformer Type | Buck/Boost |
| Dimensions (W×H×D) | 7.68 × 11.02 × 6.38 in |
| Weight | 42 lb |
Product Description
The TX-B3-020K-124210 is a 2 kVA single-phase, resin-encapsulated buck-boost transformer. It has a dual 120/240V primary winding and a 16/32V low-voltage winding — these are the transformer’s windings, not a 120/240V-to-16/32V conversion. Wired as a buck-boost autotransformer, the low-voltage winding adds to or subtracts from the supply to make small voltage corrections (typically a few percent), so the unit carries only the correction portion of the load and supports a much larger connected load. It can also serve as an isolation transformer at 16/32V.
Housed in a NEMA 3R steel enclosure (ANSI 70 light grey) for indoor or outdoor mounting with 3/4" NPT conduit knockouts, aluminum windings, Class 180°C insulation, 115°C rise, 50/60 Hz, no taps, cETLus listed. Use one unit for single-phase, two (open delta) or three (wye) for three-phase buck-boost banks.
