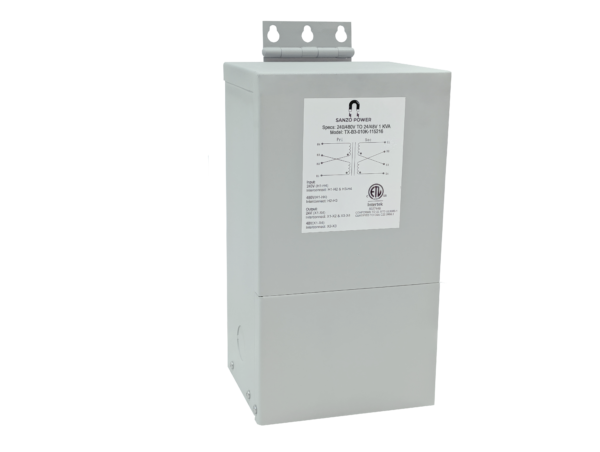

1 kVA Buck-Boost Base Transformer, 240/480V × 24/48V, Single Phase
$446.60
Sanzo Power 1 kVA single-phase buck-boost base transformer — 240/480V × 24/48V dual windings. Resin-encapsulated, NEMA 3R, wall mount, 115°C rise, cETLus. For small voltage corrections in single- or three-phase buck-boost banks.
✔ In Stock: 4
Compare with similar items
 |  |  |  |  |  | |
| Item | This item — Sanzo Power TX-B3-010K-115216 | Acme Electric T137920 | Jefferson Electric 416-1451-000 | Hammond Power Solutions Q1C0DTCB | Federal Pacific K1XGF24-1 | SolaHD HS22F1B |
| Price | $446.60 | $826.00 | $795.00 | $857.00 | $840.00 | $871.00 |
| Availability | ✔ In Stock: 4 | Ships in 10-14 weeks | Ships in 8-12 weeks | Ships in 10-14 weeks | Ships in 12-16 weeks | Ships in 12-16 weeks |
| Add to Cart | View | View | View | View | View | |
| Brand | Sanzo Power | Acme Electric | Jefferson Electric | Hammond Power Solutions | Federal Pacific | SolaHD |
| Capacity | 1 kVA | — | — | — | — | — |
| Primary Voltage | 240/480V | 240/480V | 240/480V | 240/480V | 240/480V | 240/480V |
| Secondary Voltage | 24/48V | 24/48V | 24/48V | 24/48V | 24/48V | 24/48V |
| Phase | Single Phase | Single-Phase | Single-Phase | Single-Phase | Single-Phase | Single-Phase |
| Enclosure | NEMA 3R | — | — | — | — | — |
| Listing | cETLus Listed | — | — | — | — | — |
| Max Primary OCP | 6A | — | — | — | — | — |
| Frequency | 50/60 Hz | — | — | — | — | — |
| Temperature Rise | 115°C | — | — | — | — | — |
| Insulation | 180°C | — | — | — | — | — |
| Configuration | Resin-Encapsulated | — | — | — | — | — |
| Taps | None | — | — | — | — | — |
| Mount | Wall | — | — | — | — | — |
| Transformer Type | Buck/Boost | — | — | — | — | — |
Specifications
| Brand | Sanzo Power |
| Capacity | 1 kVA |
| Primary Voltage | 240/480V |
| Secondary Voltage | 24/48V |
| Phase | Single Phase |
| Max Primary OCP | 6A |
| Conduit Knockout | 3/4" NPT |
| Frequency | 50/60 Hz |
| Temperature Rise | 115°C |
| Insulation | 180°C |
| Configuration | Resin-Encapsulated |
| Part # | TX-B3-010K-115216 |
| Taps | None |
| Winding Material | Aluminum |
| Weatherproof Rating | NEMA 3R |
| Enclosure Material | Steel |
| Finish Color | ANSI 70 Light Grey |
| Certification Listing | cETLus |
| Transformer Type | Buck/Boost |
| Dimensions (W×H×D) | 5.43 × 10.08 × 4.49 in |
| Weight | 27 lb |
Product Description

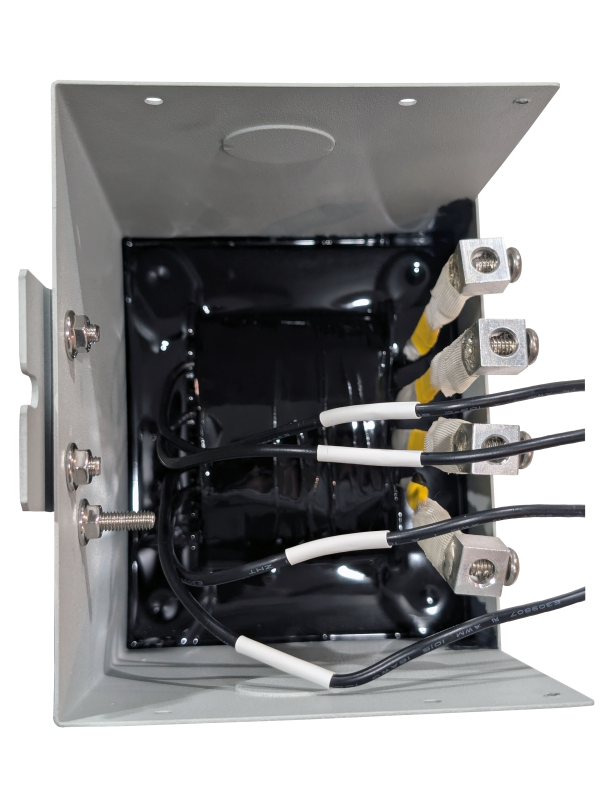

The TX-B3-010K-115216 is a 1 kVA single-phase, resin-encapsulated buck-boost transformer. It has a dual 240/480V primary winding and a 24/48V low-voltage winding — these are the transformer’s windings, not a 240/480V-to-24/48V conversion. Wired as a buck-boost autotransformer, the low-voltage winding adds to or subtracts from the supply to make small voltage corrections (typically a few percent), so the unit carries only the correction portion of the load and supports a much larger connected load. It can also serve as an isolation transformer at 24/48V.

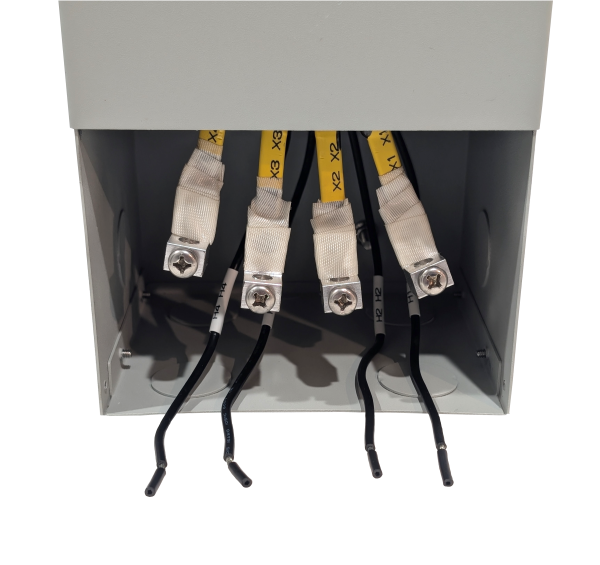

Housed in a NEMA 3R steel enclosure (ANSI 70 light grey) for indoor or outdoor mounting with 3/4" NPT conduit knockouts, aluminum windings, Class 180°C insulation, 115°C rise, 50/60 Hz, no taps, cETLus listed. Use one unit for single-phase, two (open delta) or three (wye) for three-phase buck-boost banks.
