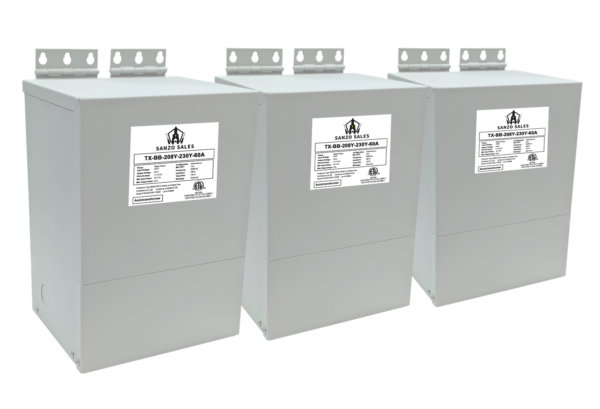

88.77 kVA Step-Up Buck-Boost Transformer (Booster), 400V → 410V, 125A, Three Phase
$2,007.74
88.77 kVA three-phase buck-boost booster that boosts 400V to 410V (2% correction) at 125A. Encapsulated NEMA 3R, cETLus listed. In-stock ships same business day.
Ships in 2-3 weeks
Specifications
| Brand | Sanzo Sales |
| Phase | Three Phase (3-PH), Delta |
| Capacity | 88.77 kVA |
| Primary Voltage | 400V |
| Primary Amperage | 128A |
| Secondary Voltage | 410V |
| Secondary Amperage | 125A |
| Maximum Primary OCP | 175A |
| Frequency | 50/60 Hz |
| Insulation | 180°C |
| Temperature Rise | 115°C |
| Transformer Type | Buck/Boost |
| Part # | TX-BB-400Y-410Y.237-125A |
| Configuration | Encapsulated Autotransformer |
| Primary Termination | Lead Wires & Terminal Lugs |
| Secondary Termination | Lead Wires & Terminal Lugs |
| Termination Access | (6) ¾" NPT Hubs |
| Winding Material | Aluminum |
| Enclosure Material | Steel |
| Finish Color | ANSI 70 Light Grey |
| Weatherproof Rating | NEMA 3R |
| Certification Listing | cETLus |
| Dimensions (W×H×D) | 16.79 × 10.87 × 4.49 in |
| Weight | 102 lb |
Product Description
The TX-BB-400Y-410Y.237-125A is a 88.77 kVA three-phase buck-boost transformer that boosts a 400V supply to 410V — a 2% voltage correction — bringing 410V-rated equipment back into its proper operating range. Wired as an encapsulated booster transformer (autotransformer), it carries only the correction portion of the load, so this unit corrects a much larger connected load: up to 125A at 410V (88.77 kVA usable line capacity).
Resin-encapsulated in a NEMA 3R steel enclosure (ANSI 70 light grey) for indoor or outdoor mounting at the disconnect. Lead wires and terminal lugs, aluminum windings, 180°C insulation system, 115°C rise, 50/60 Hz, cETLus listed. Supplied as a two-unit open-delta bank for three-phase delta service. In-stock units ship the same business day.
