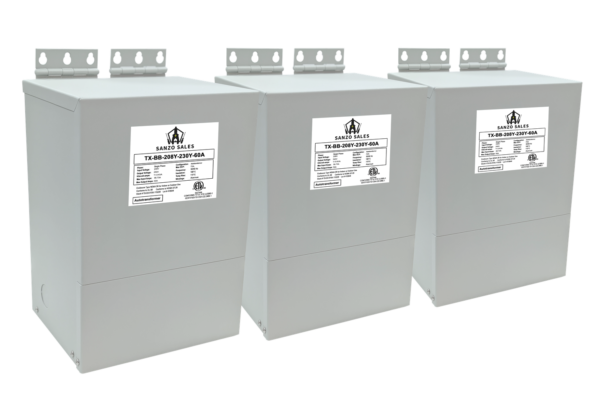

58.34 kVA Step-Down Buck-Boost Transformer, 431V → 378V, 89.1A, Three Phase
$3,560.55
58.34 kVA three-phase buck-boost that bucks 431V to 378V (12% correction) at 89.1A. Encapsulated NEMA 3R, cETLus listed. In-stock ships same business day.
Ships in 2-3 weeks
Specifications
| Brand | Sanzo Sales |
| Phase | Three Phase (3-PH), Delta |
| Capacity | 58.34 kVA |
| Primary Voltage | 431V |
| Primary Amperage | 78.1A |
| Secondary Voltage | 378V |
| Secondary Amperage | 89.1A |
| Maximum Primary OCP | 100A |
| Frequency | 50/60 Hz |
| Insulation | 180°C |
| Temperature Rise | 115°C |
| Transformer Type | Buck/Boost |
| Part # | TX-BB-431Y-378Y.218-89A |
| Configuration | Encapsulated Autotransformer |
| Primary Termination | Lead Wires & Terminal Lugs |
| Secondary Termination | Lead Wires & Terminal Lugs |
| Termination Access | (6) ¾" NPT Hubs |
| Winding Material | Aluminum |
| Enclosure Material | Steel |
| Finish Color | ANSI 70 Light Grey |
| Weatherproof Rating | NEMA 3R |
| Certification Listing | cETLus |
| Dimensions (W×H×D) | 23.54 × 12.2 × 6.38 in |
| Weight | 156 lb |
Product Description
The TX-BB-431Y-378Y.218-89A is a 58.34 kVA three-phase buck-boost transformer that bucks a 431V supply to 378V — a 12% voltage correction — bringing 378V-rated equipment back into its proper operating range. Wired as an encapsulated buck transformer (autotransformer), it carries only the correction portion of the load, so this unit corrects a much larger connected load: up to 89.1A at 378V (58.34 kVA usable line capacity).
Resin-encapsulated in a NEMA 3R steel enclosure (ANSI 70 light grey) for indoor or outdoor mounting at the disconnect. Lead wires and terminal lugs, aluminum windings, 180°C insulation system, 115°C rise, 50/60 Hz, cETLus listed. Supplied as a two-unit open-delta bank for three-phase delta service. In-stock units ship the same business day.
