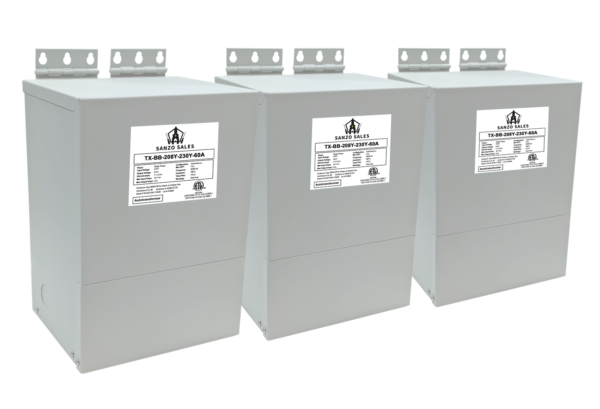

50.3 kVA Step-Up Buck-Boost Transformer (Booster), 440V → 484V, 60A, Three Phase
$5,775.35
50.3 kVA three-phase buck-boost booster that boosts 440V to 484V (10% correction) at 60A. Encapsulated NEMA 3R, cETLus listed. In-stock ships same business day.
Ships in 2-3 weeks
Specifications
| Brand | Sanzo Sales |
| Phase | Three Phase (3-PH), Delta |
| Capacity | 50.3 kVA |
| Primary Voltage | 440V |
| Primary Amperage | 66A |
| Secondary Voltage | 484V |
| Secondary Amperage | 60A |
| Maximum Primary OCP | 90A |
| Frequency | 50/60 Hz |
| Insulation | 180°C |
| Temperature Rise | 115°C |
| Transformer Type | Buck/Boost |
| Part # | TX-BB-440Y-484Y.279-60A |
| Configuration | Encapsulated Autotransformer |
| Primary Termination | Lead Wires & Terminal Lugs |
| Secondary Termination | Lead Wires & Terminal Lugs |
| Termination Access | (6) ¾" NPT Hubs |
| Winding Material | Aluminum |
| Enclosure Material | Steel |
| Finish Color | ANSI 70 Light Grey |
| Weatherproof Rating | NEMA 3R |
| Certification Listing | cETLus |
| Dimensions (W×H×D) | 23.54 × 12.2 × 6.38 in |
| Weight | 180 lb |
Product Description
The TX-BB-440Y-484Y.279-60A is a 50.3 kVA three-phase buck-boost transformer that boosts a 440V supply to 484V — a 10% voltage correction — bringing 484V-rated equipment back into its proper operating range. Wired as an encapsulated booster transformer (autotransformer), it carries only the correction portion of the load, so this unit corrects a much larger connected load: up to 60A at 484V (50.3 kVA usable line capacity).
Resin-encapsulated in a NEMA 3R steel enclosure (ANSI 70 light grey) for indoor or outdoor mounting at the disconnect. Lead wires and terminal lugs, aluminum windings, 180°C insulation system, 115°C rise, 50/60 Hz, cETLus listed. Supplied as a two-unit open-delta bank for three-phase delta service. In-stock units ship the same business day.
