47.8 kVA Step-Down Buck-Boost Transformer, 480V → 460V, 60A, Three Phase
$3,839.69
47.8 kVA three-phase buck-boost that bucks 480V to 460V (4% correction) at 60A. Encapsulated NEMA 3R, cETLus listed. In-stock ships same business day.
✔ In Stock: 1
Specifications
| Brand | Sanzo Sales |
| Phase | Three Phase (3-PH), Delta |
| Capacity | 47.8 kVA |
| Primary Voltage | 480V |
| Primary Amperage | 57.5A |
| Secondary Voltage | 460V |
| Secondary Amperage | 60A |
| Maximum Primary OCP | 80A |
| Frequency | 50/60 Hz |
| Insulation | 180°C |
| Temperature Rise | 115°C |
| Transformer Type | Buck/Boost |
| Part # | TX-BB-480D-460D-60A |
| Configuration | Encapsulated Autotransformer |
| Primary Termination | Lead Wires & Terminal Lugs |
| Secondary Termination | Lead Wires & Terminal Lugs |
| Termination Access | (6) ¾" NPT Hubs |
| Winding Material | Aluminum |
| Enclosure Material | Steel |
| Finish Color | ANSI 70 Light Grey |
| Weatherproof Rating | NEMA 3R |
| Certification Listing | cETLus |
| Dimensions (W×H×D) | 15.61 × 12.2 × 6.38 in |
| Weight | 120 lb |
Product Description
The TX-BB-480D-460D-60A is a 47.8 kVA three-phase buck-boost transformer that bucks a 480V supply to 460V — a 4% voltage correction — bringing 460V-rated equipment back into its proper operating range. Wired as an encapsulated buck transformer (autotransformer), it carries only the correction portion of the load, so this unit corrects a much larger connected load: up to 60A at 460V (47.8 kVA usable line capacity).

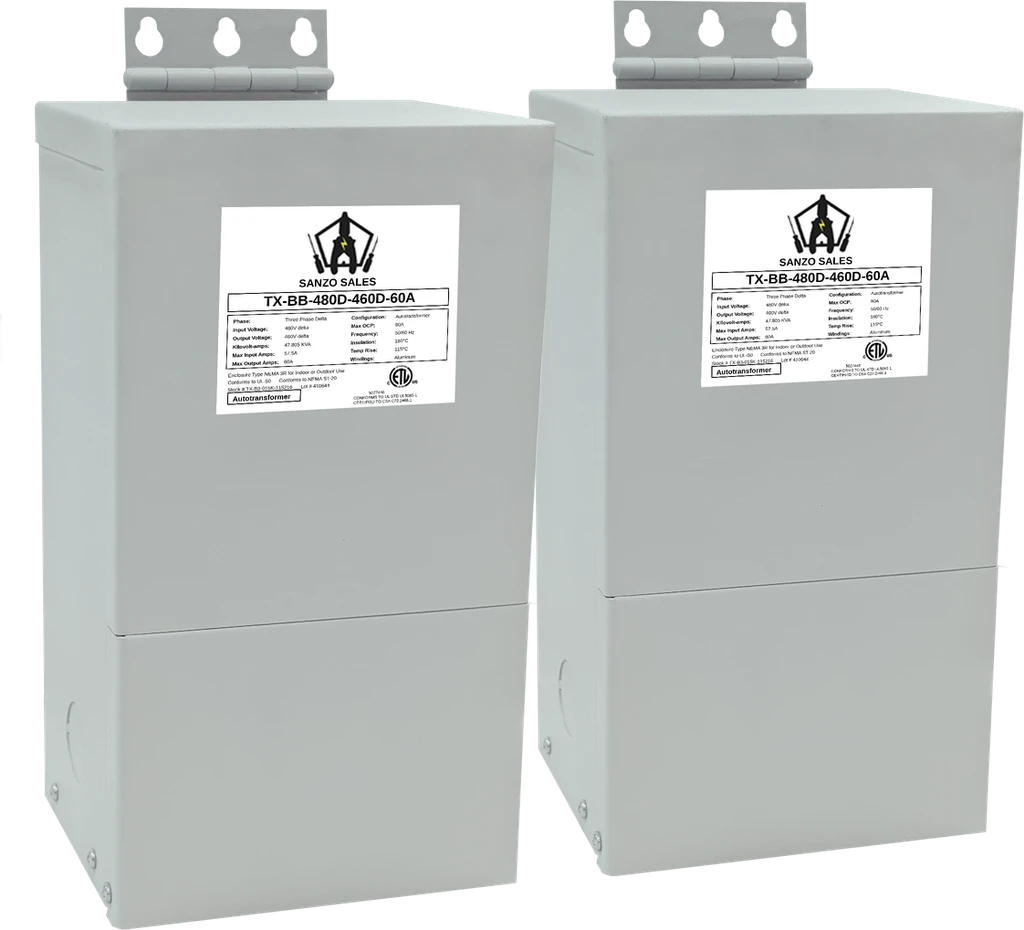

Resin-encapsulated in a NEMA 3R steel enclosure (ANSI 70 light grey) for indoor or outdoor mounting at the disconnect. Lead wires and terminal lugs, aluminum windings, 180°C insulation system, 115°C rise, 50/60 Hz, cETLus listed. Supplied as a two-unit open-delta bank for three-phase delta service. In-stock units ship the same business day.
