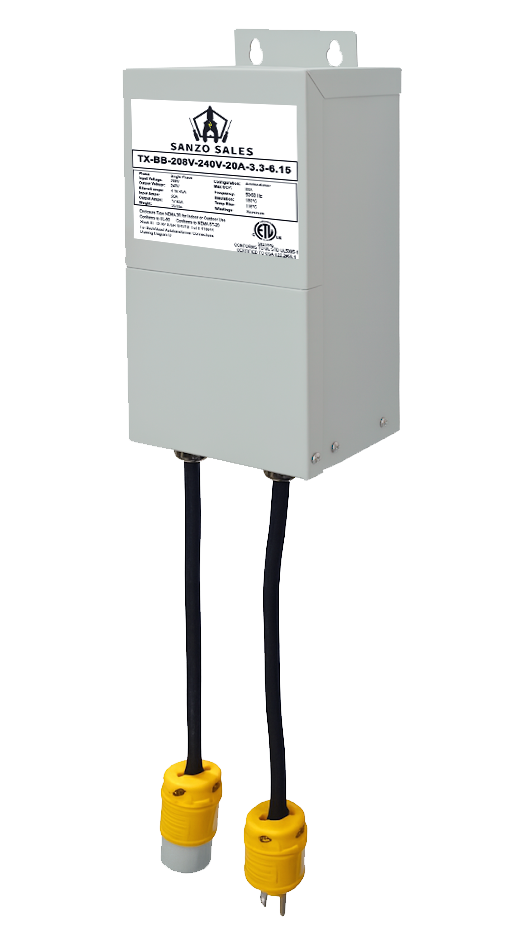

4.16 kVA Corded Step-Up Transformer, 208V → 240V, 20A Circuit, Single Phase, 8-FT Line In, 4-FT Line Out, NEMA 6-20
$608.16
Single-phase buck-boost transformer. Boosts 208V to 240V at 20 amps continuous output. 4.16 kVA capacity. Pre-wired unit. 208V Primary, 8′ Line-In w/ 6-20P. 240V Secondary, 4′ Line-Out w/ 6-20C. NEMA 3R enclosed, cETLus listed, wall mount.
Ships in 2-3 Days
Specifications
| Brand | Sanzo Sales |
| Phase | Single Phase (1-PH), AC |
| Primary Voltage | 208V |
| Primary Amperage | 20A |
| Secondary Voltage | 240V |
| Secondary Amperage | 17.63A |
| Frequency | 50/60 Hz |
| Insulation | 180°C |
| Temperature Rise | 115°C |
| Transformer Type | Corded Buck/Boost |
| Configuration | Pre-Wired Encapsulated Autotransformer |
| Part # | TX-BB-208V-240V-20A-8.4-6.20 |
| Primary Termination | 8' 12/3 SJOOW Cord w/ NEMA 6-20P Plug |
| Secondary Termination | 4' 12/3 SJOOW Cord w/ NEMA 6-20C Connector |
| Termination Access | Factory wired leads w/ cord caps |
| Winding Material | Aluminum |
| Enclosure Material | Steel |
| Finish Color | ANSI 70 Light Grey |
| Weatherproof Rating | NEMA 3R |
| Certification Listing | cETLus |
| Dimensions (W×H×D) | 4.49 × 10.08 × 5.43 in |
| Weight | 31 lb |
Product Description

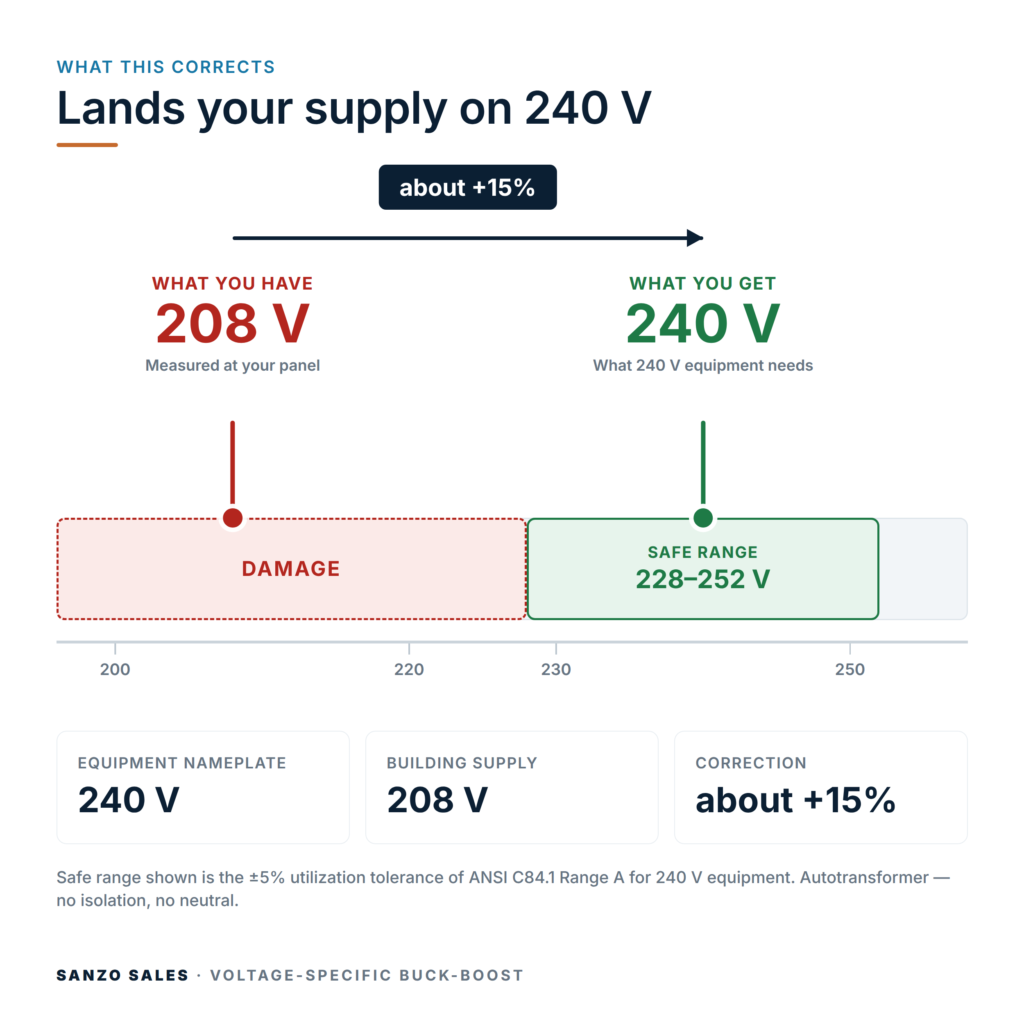

The TX-BB-208V-240V-20A-8.4-6.20 is a 4.16 kVA single-phase buck-boost transformer that boosts a 208V supply to 240V — a 15% voltage correction — bringing 240V-rated equipment back into its proper operating range.
This unit corrects a 208V building supply to 240V at the point of use, by permanently boosting the circuit voltage, without modifying the building's electrical service. Designed for equipment rated 240V that is installed on a system experiencing undervoltage from the utility. Wired as an autotransformer, the unit handles only the difference between input and output and not the full load. This is why a 20-amp buck-boost transformer is significantly smaller and lighter than a 20-amp isolation transformer. The encapsulated core construction eliminates audible hum and provides stable thermal performance under continuous duty. Features pre-wired 8' line-in and 4' line-out cords terminated in NEMA 6-20 straight blade cord caps. Surface mounting bracket for easy wall mount installations.
This step up transformer is ideal for quick installs at point of use for equipment specific applications.
