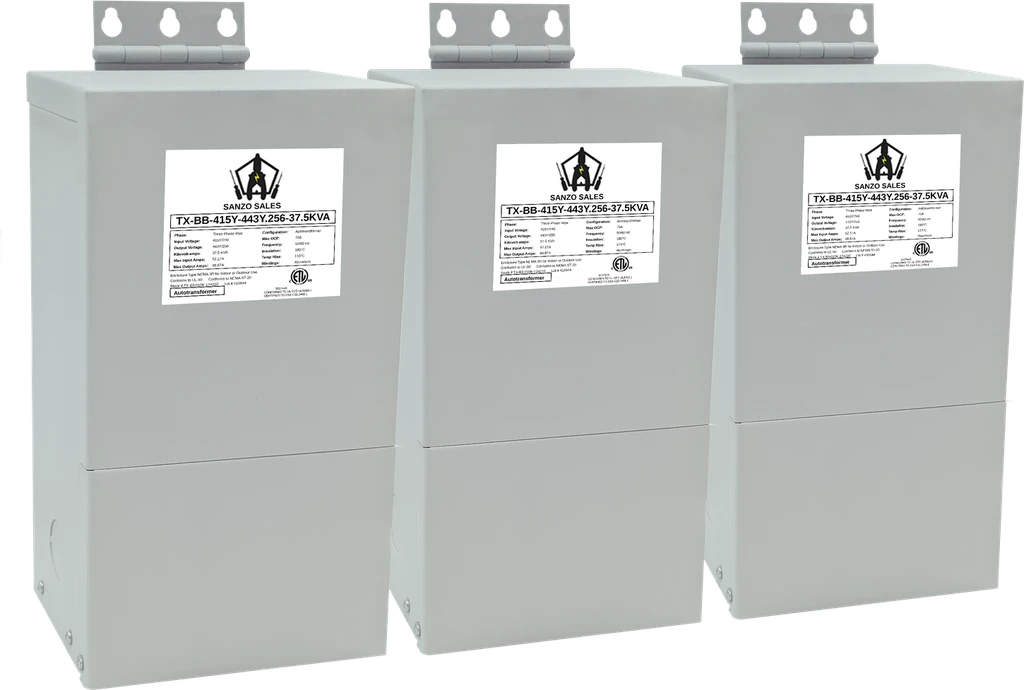

37.46 kVA Buck-Boost Transformer, 415V to 443V, Three Phase (3-PH), Wye
by Sanzo Sales · Part # TX-BB-415Y-443Y.256-37.5KVA
4.9 out of 5 · 265 customer reviews(opens the reviews page)$2,093.96
Need it faster?
Voltage, phase, and connection match. Capacity differs, so review any lower-capacity warning.
Lower-capacity option — confirmation required
37.46 kVA three-phase wye buck-boost transformer for 415 V to 443 V nominal step-up voltage correction, rated for up to 48.87 A continuous output. Match the supply voltage, equipment voltage and load current before ordering. This autotransformer corrects voltage without electrical isolation; output varies with incoming supply conditions and load.
Ships in 2-3 weeks (estimated)
Inventory & Inbound
TX-BB-415Y-443Y.256-37.5KVA
0 currently in stock
- 15 more available, earliest Oct 30, 2026
- 34 more available, earliest Nov 16, 2026
Projected inbound quantities and dates are based on current purchase orders with our suppliers and are not guaranteed. We update them as suppliers confirm.
Need it sooner? Production can potentially be expedited for an added fee. Request a quote to expedite →
Specifications
| Brand | Sanzo Sales |
| Frequency | 50/60 Hz |
| Temperature Rise | 115°C |
| Insulation | 180°C |
| Configuration | Resin-Encapsulated |
| Winding Material | Aluminum |
| Weatherproof Rating | NEMA 3R |
| Enclosure Material | Steel |
| Finish Color | ANSI 70 Light Grey |
| Certification Listing | cETLus |
| Transformer Type | Buck/Boost |
| Part # | TX-BB-415Y-443Y.256-37.5KVA |
| Phase | Three Phase (3-PH), Wye |
| Capacity | 37.46 kVA kVA |
| Primary Voltage | 415V |
| Secondary Voltage | 443V |
| Primary Amperage | 52.128 A |
| Secondary Amperage | 48.87 A |
| Maximum Primary OCP | Determine for the installed circuit |
| Secondary Line-to-Neutral Voltage | 256V |
| Dimensions (W×H×D) | 5.43 × 10.08 × 4.49 in |
| Weight | 81 lb |
Product Description
The TX-BB-415Y-443Y.256-37.5KVA is a three-phase wye step-up buck-boost transformer for applications with a nominal 415 V supply and equipment requiring 443 V. It raises the supply voltage to help match the equipment's operating range. The finished-product rating is 48.87 A continuous output, with 37.46 kVA capacity at the calculated output voltage.
Select the right voltage and capacity
Compare the equipment nameplate voltage and running current with this product's ratings. Circuit-breaker size alone does not establish the connected load. For motors, compressors or multiple loads, check starting requirements, duty cycle and the total simultaneous current with the equipment manufacturer or qualified installer.
Will the output stay at exactly 443 V?
The 443 V designation is the nominal application voltage. Output is not regulated and changes with incoming voltage and load. Compare the expected operating range with the equipment's permitted voltage range rather than assuming a fixed output under every condition.
Match the electrical system
This product is intended for three-phase wye applications. Match the supply neutral and equipment neutral requirements to the assigned installation instructions; this product does not create a neutral. Buck-boost autotransformers provide voltage correction without electrical isolation. If electrical isolation is required, select an appropriate isolation transformer instead.
Plan the installation
Use the specification sheet, dimensional drawing and installation instructions matched to this exact part number. Review mounting clearances, conductor sizing, overcurrent protection and grounding before installation. Electrical work must be performed by qualified personnel with power disconnected.
See the specifications and product documents on this page for detailed ratings and installation requirements. Need help selecting a transformer? Use the transformer sizing calculator or request a quote with your supply voltage and equipment nameplate information.
