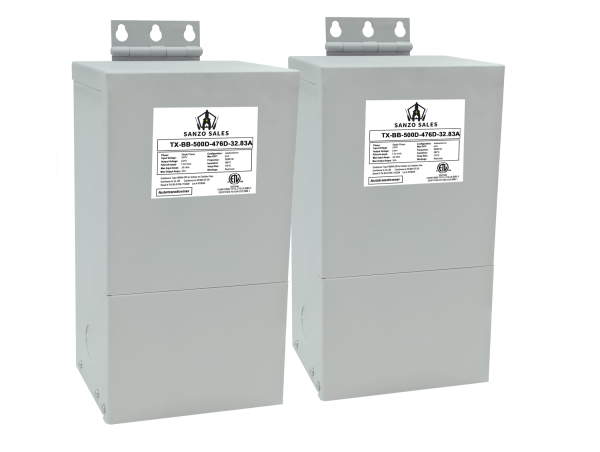

27.07 kVA Step-Down Buck-Boost Transformer, 500V → 476V, 32.83A, Three Phase
$1,457.87
27.07 kVA three-phase buck-boost that bucks 500V to 476V (5% correction) at 32.83A. Encapsulated NEMA 3R, cETLus listed. In-stock ships same business day.
✔ In Stock: 2
Specifications
| Brand | Sanzo Sales |
| Phase | Three Phase (3-PH), Delta |
| Capacity | 27.07 kVA |
| Primary Voltage | 500V |
| Primary Amperage | 31.26A |
| Secondary Voltage | 476V |
| Secondary Amperage | 32.83A |
| Maximum Primary OCP | 40A |
| Frequency | 50/60 Hz |
| Insulation | 180°C |
| Temperature Rise | 115°C |
| Transformer Type | Buck/Boost |
| Part # | TX-BB-500D-476D-32.83A |
| Configuration | Encapsulated Autotransformer |
| Primary Termination | Lead Wires & Terminal Lugs |
| Secondary Termination | Lead Wires & Terminal Lugs |
| Termination Access | (6) ¾" NPT Hubs |
| Winding Material | Aluminum |
| Enclosure Material | Steel |
| Finish Color | ANSI 70 Light Grey |
| Weatherproof Rating | NEMA 3R |
| Certification Listing | cETLus |
| Weight | 68 lb |
Product Description

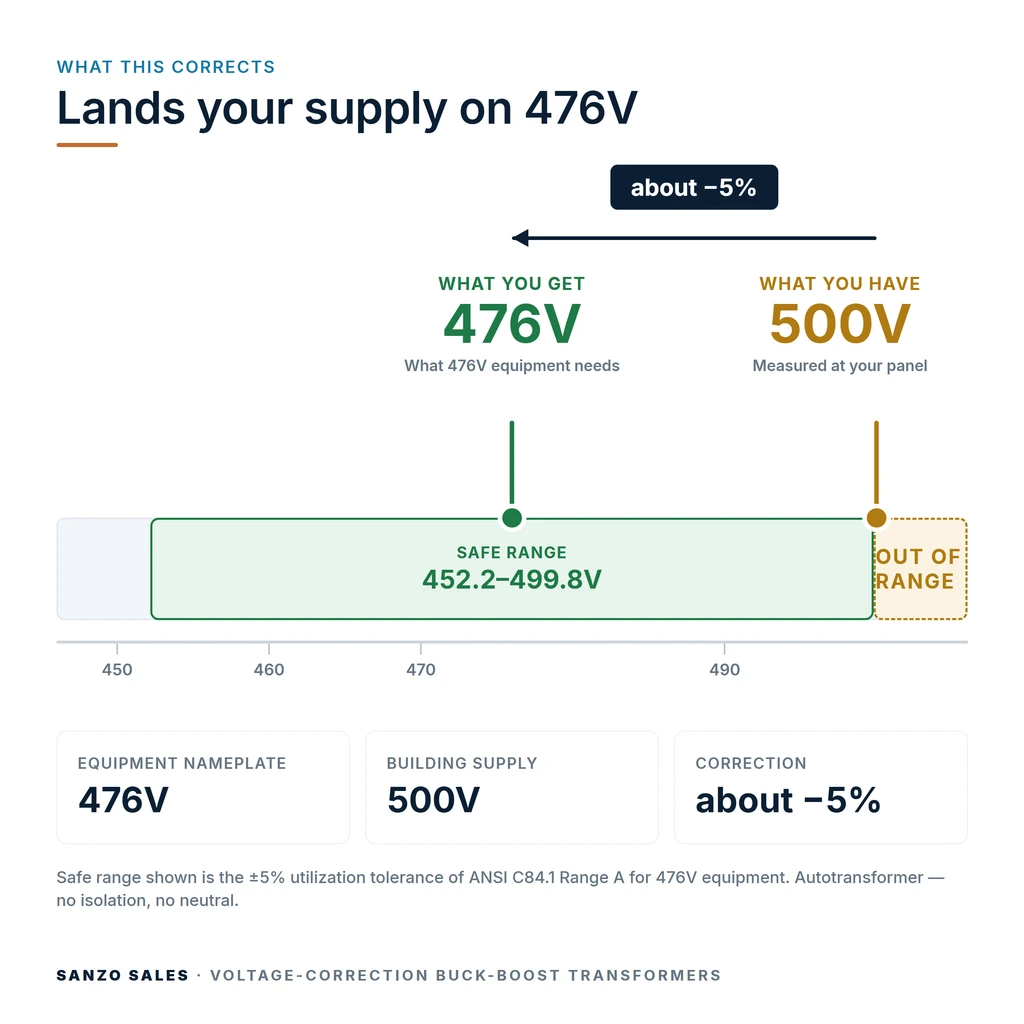

The TX-BB-500D-476D-32.83A is a 27.07 kVA three-phase buck-boost transformer that bucks a 500V supply to 476V — a 5% voltage correction — bringing 476V-rated equipment back into its proper operating range. Wired as an encapsulated buck transformer (autotransformer), it carries only the correction portion of the load, so this unit corrects a much larger connected load: up to 32.83A at 476V (27.07 kVA usable line capacity).

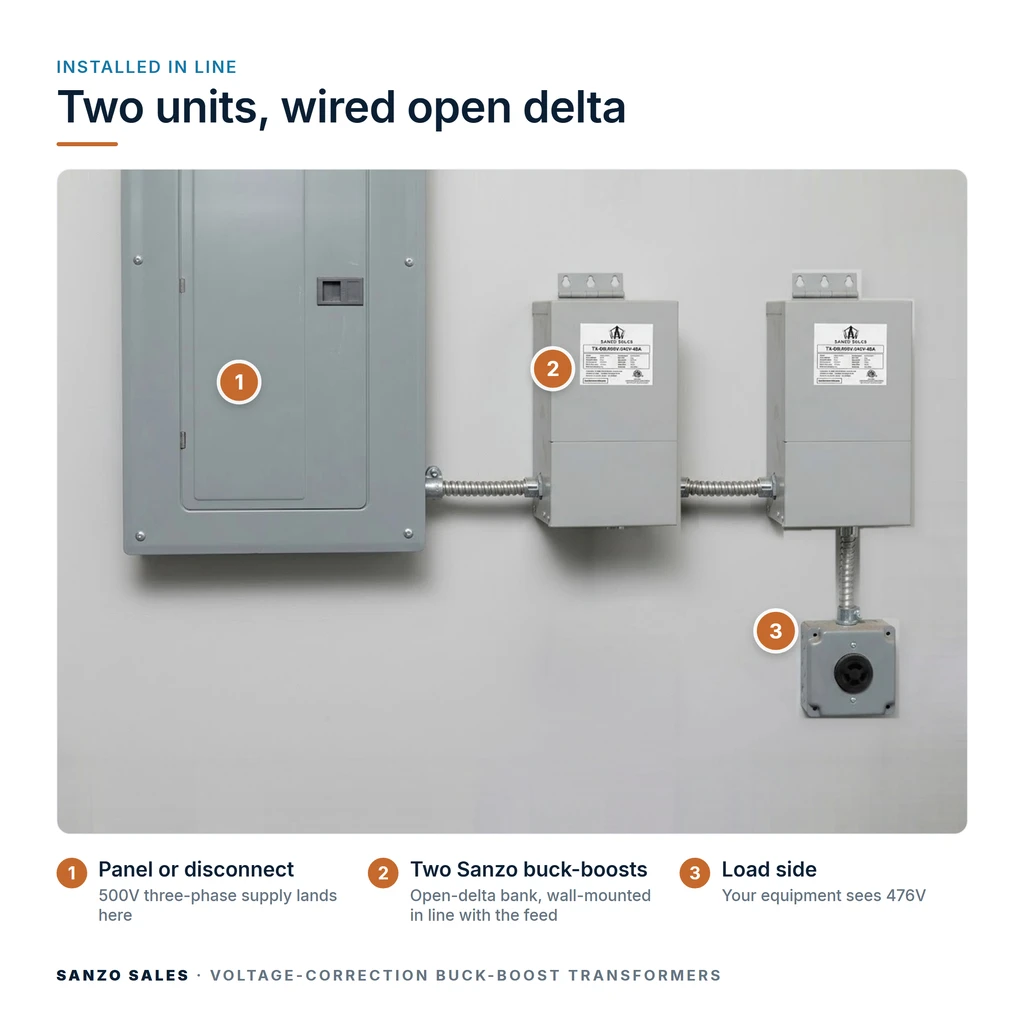

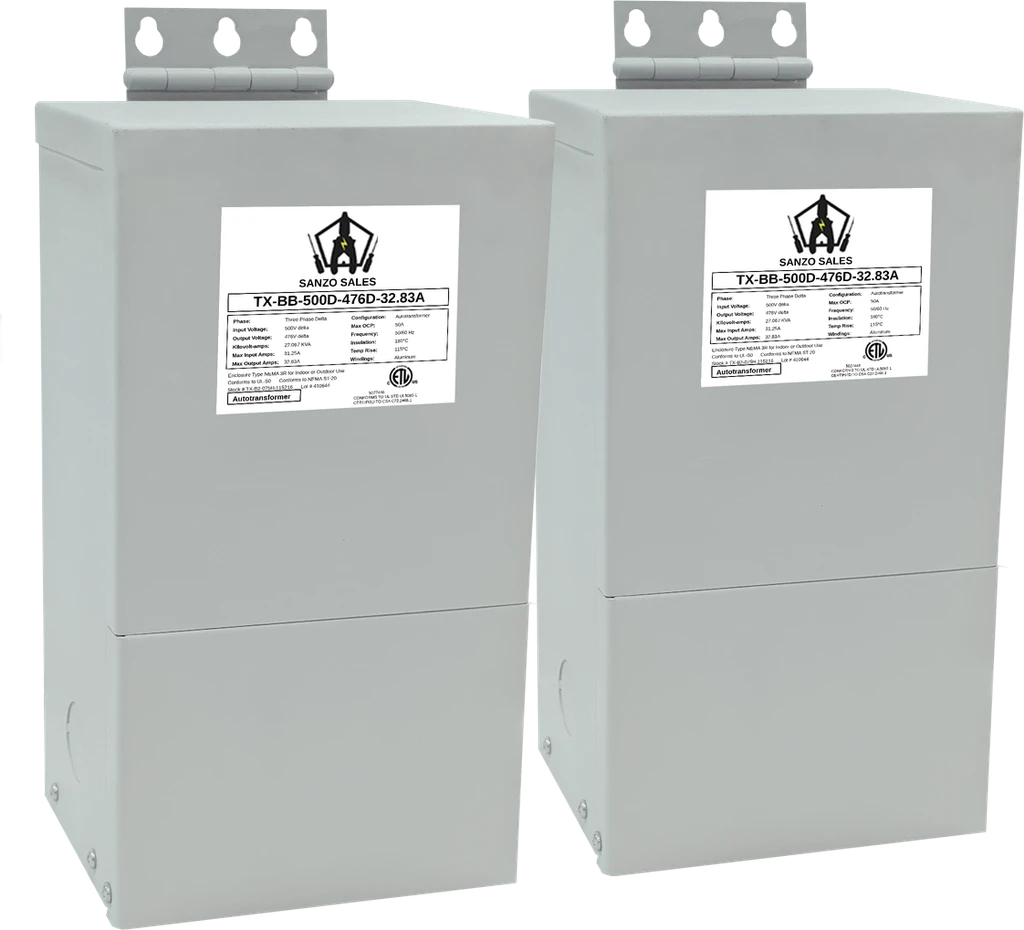

Resin-encapsulated in a NEMA 3R steel enclosure (ANSI 70 light grey) for indoor or outdoor mounting at the disconnect. Lead wires and terminal lugs, aluminum windings, 180°C insulation system, 115°C rise, 50/60 Hz, cETLus listed. Supplied as a two-unit open-delta bank for three-phase delta service. In-stock units ship the same business day.
