23.82 kVA Step-Up Buck-Boost Transformer (Booster), 194V → 220V, 62.5A, Three Phase
$2,704.47
23.82 kVA three-phase buck-boost booster that boosts 194V to 220V (13% correction) at 62.5A. Encapsulated NEMA 3R, cETLus listed. In-stock ships same business day.
✔ In Stock: 23
Specifications
| Brand | Sanzo Sales |
| Phase | Three Phase (3-PH), Delta |
| Capacity | 23.82 kVA |
| Primary Voltage | 194V |
| Primary Amperage | 70.89A |
| Secondary Voltage | 220V |
| Secondary Amperage | 62.5A |
| Maximum Primary OCP | 90A |
| Frequency | 50/60 Hz |
| Insulation | 180°C |
| Temperature Rise | 115°C |
| Transformer Type | Buck/Boost |
| Part # | TX-BB-194D-220D-62.5A |
| Configuration | Encapsulated Autotransformer |
| Primary Termination | Lead Wires & Terminal Lugs |
| Secondary Termination | Lead Wires & Terminal Lugs |
| Termination Access | (6) ¾" NPT Hubs |
| Winding Material | Aluminum |
| Enclosure Material | Steel |
| Finish Color | ANSI 70 Light Grey |
| Weatherproof Rating | NEMA 3R |
| Certification Listing | cETLus |
| Dimensions (W×H×D) | 14.25 × 11.75 × 6.5 in |
| Weight | 84 lb |
Product Description

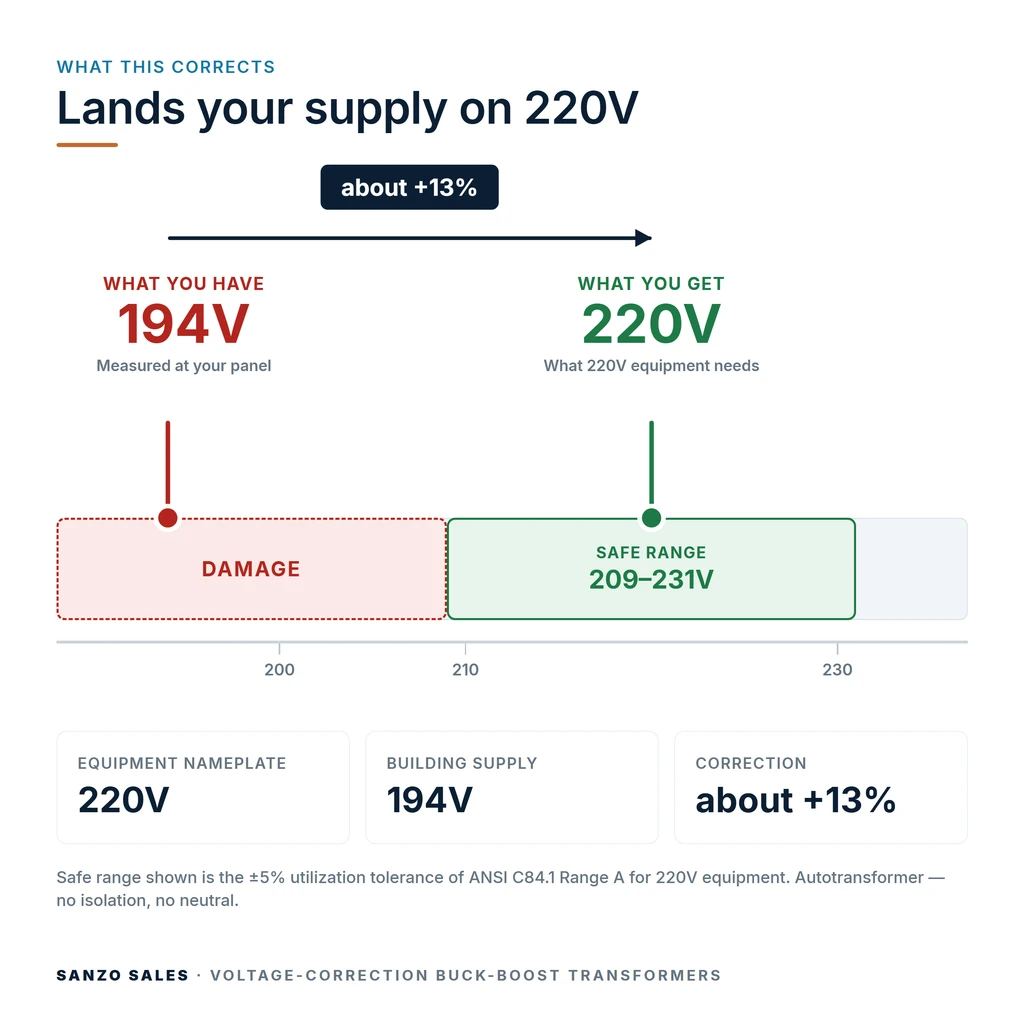

The TX-BB-194D-220D-62.5A is a 23.82 kVA three-phase buck-boost transformer that boosts a 194V supply to 220V — a 13% voltage correction — bringing 220V-rated equipment back into its proper operating range. Wired as an encapsulated booster transformer (autotransformer), it carries only the correction portion of the load, so this unit corrects a much larger connected load: up to 62.5A at 220V (23.82 kVA usable line capacity).

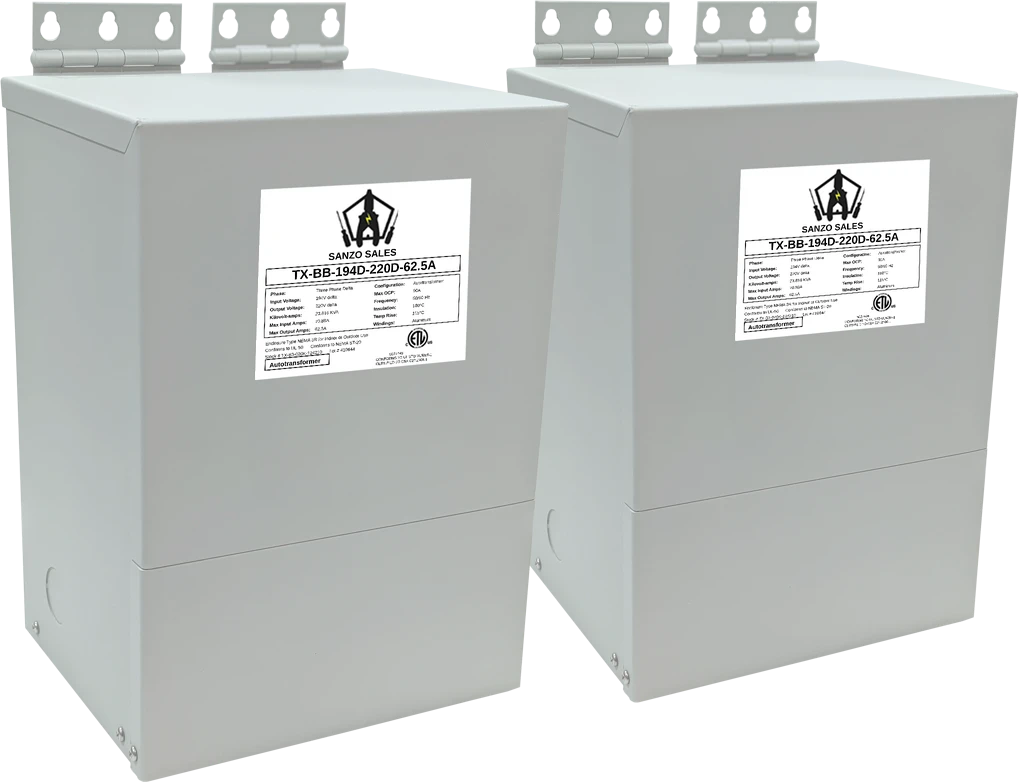

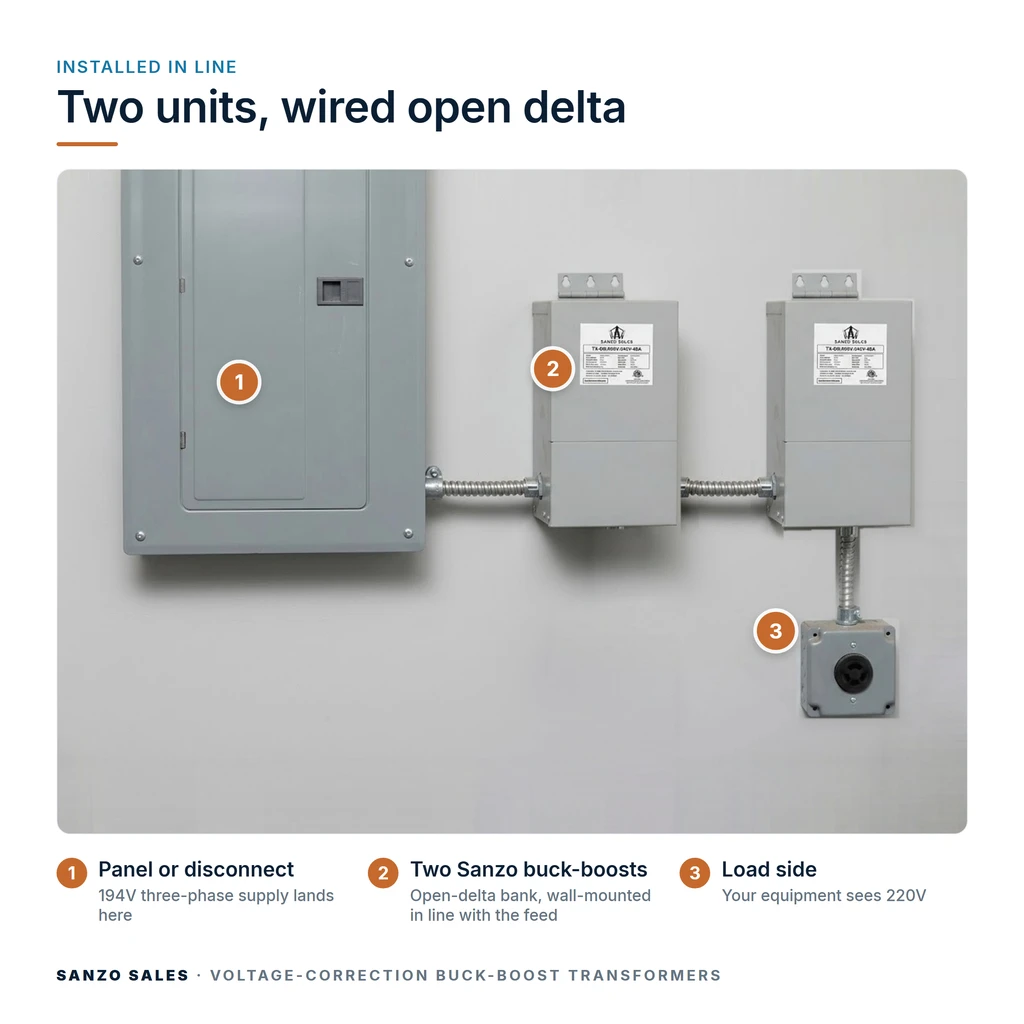

Resin-encapsulated in a NEMA 3R steel enclosure (ANSI 70 light grey) for indoor or outdoor mounting at the disconnect. Lead wires and terminal lugs, aluminum windings, 180°C insulation system, 115°C rise, 50/60 Hz, cETLus listed. Supplied as a two-unit open-delta bank for three-phase delta service. In-stock units ship the same business day.
