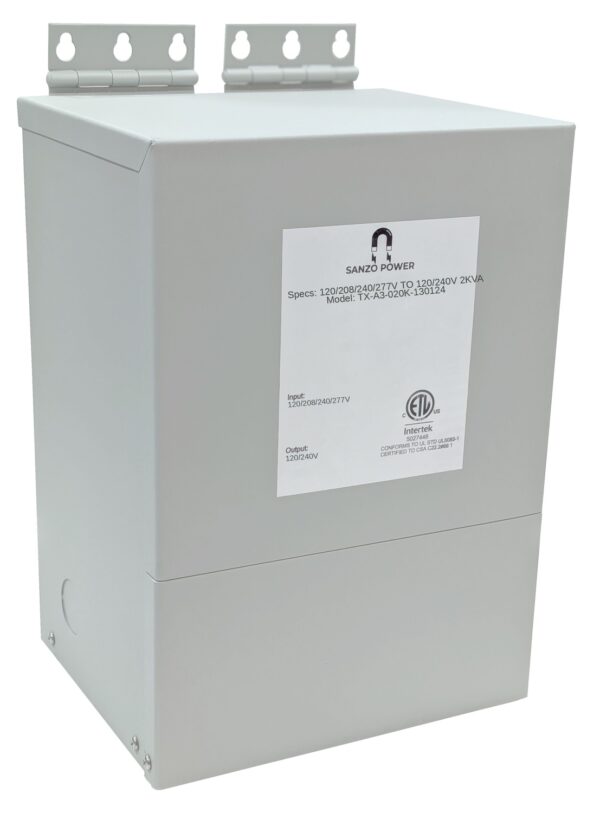

2 KVA Encapsulated General Purpose Transformer – 120/208/240/277V to 120/240V – Single Phase, NEMA 3R
by Sanzo Power · Part # TX-A3-020K-130124
Sanzo Power 2 KVA single-phase encapsulated general purpose transformer, 120/208/240/277V primary / 120/240V secondary. Resin encapsulated, NEMA 3R. ETL Listed (UL 1561), cUL, CE, RoHS.
Pricing and lead times from this manufacturer are fluctuating right now, so we're confirming every order by quote. Request a quote and we'll verify current pricing and availability — usually within the hour.
Quotes include a link to approve and pay online — no phone call needed.
Specifications
| Brand | Sanzo Power |
| Capacity | 2 kVA |
| Primary Voltage | 120/208/240/277V |
| Secondary Voltage | 120/240V |
| Phase | Single Phase |
| Primary Amps | 16.7A |
| Part # | TX-A3-020K-130124 |
| Secondary Amps | 16.7A |
| Weatherproof Rating | NEMA 3R |
| Dimensions (W×H×D) | 7.68 × 11.02 × 6.38 in |
| Weight | 42 lb |
