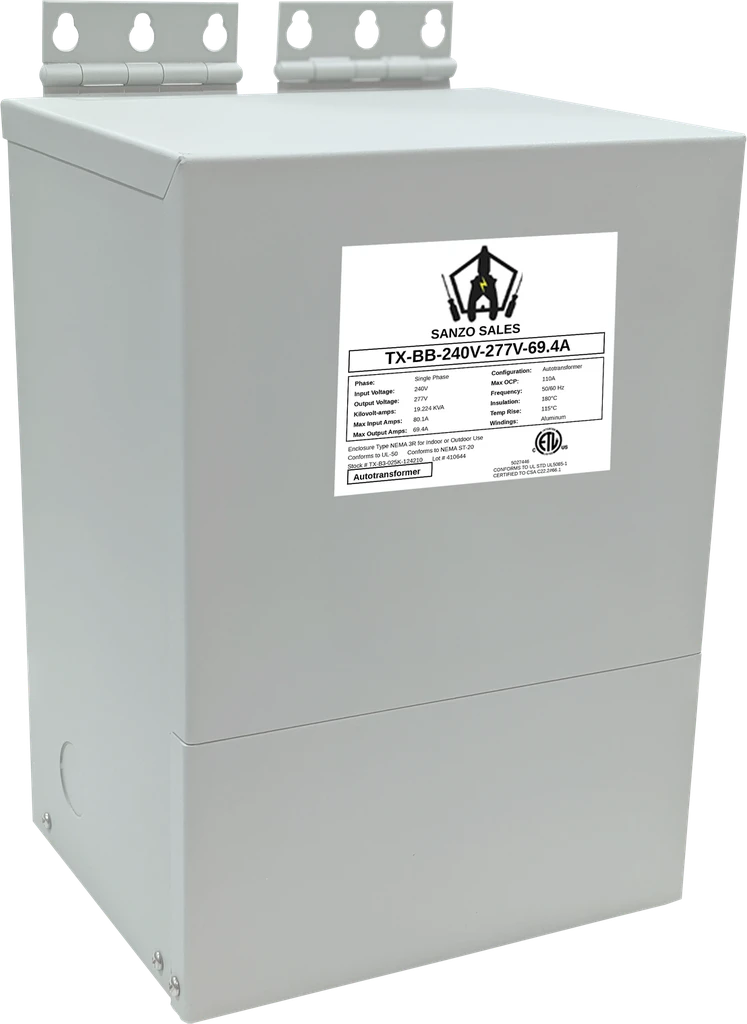

19.22 kVA Step-Up Buck-Boost Transformer (Booster), 240V → 277V, 69.4A, Single Phase
$1,265.10
19.22 kVA single-phase buck-boost booster that boosts 240V to 277V (15% correction) at 69.4A. Encapsulated NEMA 3R, cETLus listed. In-stock ships same business day.
Ships in 5-6 weeks
Specifications
| Brand | Sanzo Sales |
| Phase | Single Phase (1-PH), AC |
| Capacity | 19.22 kVA |
| Primary Voltage | 240V |
| Primary Amperage | 80.1A |
| Secondary Voltage | 277V |
| Secondary Amperage | 69.4A |
| Maximum Primary OCP | 110A |
| Frequency | 50/60 Hz |
| Insulation | 180°C |
| Temperature Rise | 115°C |
| Transformer Type | Buck/Boost |
| Part # | TX-BB-240V-277V-69.4A |
| Configuration | Encapsulated Autotransformer |
| Primary Termination | Lead Wires & Terminal Lugs |
| Secondary Termination | Lead Wires & Terminal Lugs |
| Termination Access | (6) ¾" NPT Hubs |
| Winding Material | Aluminum |
| Enclosure Material | Steel |
| Finish Color | ANSI 70 Light Grey |
| Weatherproof Rating | NEMA 3R |
| Certification Listing | cETLus |
| Dimensions (W×H×D) | 7.68 × 12.2 × 6.38 in |
| Weight | 52 lb |
Product Description
The TX-BB-240V-277V-69.4A is a 19.22 kVA single-phase buck-boost transformer that boosts a 240V supply to 277V — a 15% voltage correction — bringing 277V-rated equipment back into its proper operating range. Wired as an encapsulated booster transformer (autotransformer), it carries only the correction portion of the load, so this unit corrects a much larger connected load: up to 69.4A at 277V (19.22 kVA usable line capacity).
Resin-encapsulated in a NEMA 3R steel enclosure (ANSI 70 light grey) for indoor or outdoor mounting at the disconnect. Lead wires and terminal lugs, aluminum windings, 180°C insulation system, 115°C rise, 50/60 Hz, cETLus listed. Use two units in open-delta for three-phase delta systems, three for wye. In-stock units ship the same business day.
