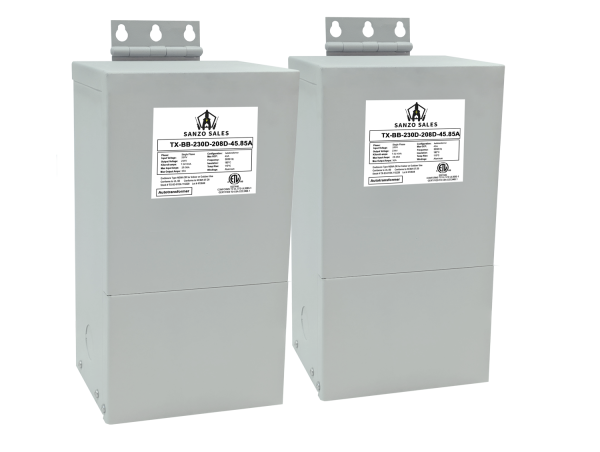

16.52 kVA Step-Down Buck-Boost Transformer, 230V → 208V, 45.85A, Three Phase
$1,259.05
16.52 kVA three-phase buck-boost that bucks 230V to 208V (10% correction) at 45.85A. Encapsulated NEMA 3R, cETLus listed. In-stock ships same business day.
✔ In Stock: 5
Specifications
| Brand | Sanzo Sales |
| Phase | Three Phase (3-PH), Delta |
| Capacity | 16.52 kVA |
| Primary Voltage | 230V |
| Primary Amperage | 41.47A |
| Secondary Voltage | 208V |
| Secondary Amperage | 45.85A |
| Maximum Primary OCP | 60A |
| Frequency | 50/60 Hz |
| Insulation | 180°C |
| Temperature Rise | 115°C |
| Transformer Type | Buck/Boost |
| Part # | TX-BB-230D-208D-45.85A |
| Configuration | Encapsulated Autotransformer |
| Primary Termination | Lead Wires & Terminal Lugs |
| Secondary Termination | Lead Wires & Terminal Lugs |
| Termination Access | (6) ¾" NPT Hubs |
| Winding Material | Aluminum |
| Enclosure Material | Steel |
| Finish Color | ANSI 70 Light Grey |
| Weatherproof Rating | NEMA 3R |
| Certification Listing | cETLus |
| Dimensions (W×H×D) | 12.01 × 10.5 × 5.5 in |
| Weight | 54 lb |
Product Description
The TX-BB-230D-208D-45.85A is a 16.52 kVA three-phase buck-boost transformer that bucks a 230V supply to 208V — a 10% voltage correction — bringing 208V-rated equipment back into its proper operating range. Wired as an encapsulated buck transformer (autotransformer), it carries only the correction portion of the load, so this unit corrects a much larger connected load: up to 45.85A at 208V (16.52 kVA usable line capacity).
Resin-encapsulated in a NEMA 3R steel enclosure (ANSI 70 light grey) for indoor or outdoor mounting at the disconnect. Lead wires and terminal lugs, aluminum windings, 180°C insulation system, 115°C rise, 50/60 Hz, cETLus listed. Supplied as a two-unit open-delta bank for three-phase delta service. In-stock units ship the same business day.
