150 kVA Step-Up Buck-Boost Transformer (Booster), 202V → 208V, 416.36A, Three Phase
by Sanzo Sales · Part # TX-BB-202D-208D-150KVA
4.9 out of 5 · 255 customer reviews(opens the reviews page)$2,120.82
Need it faster?
Voltage, phase, and connection match. Capacity differs, so review any lower-capacity warning.
Confirm you can split the load across two units
150 kVA three-phase buck-boost booster that boosts 202V to 208V (3% correction) at 416.36A. Encapsulated NEMA 3R, cETLus listed. In-stock ships same business day.
Ships in 2-3 weeks
Need it sooner? Production can potentially be expedited for an added fee. Request a quote to expedite →
Specifications
| Brand | Sanzo Sales |
| Phase | Three Phase (3-PH), Delta |
| Capacity | 150 kVA |
| Primary Voltage | 202V |
| Primary Amperage | 428.73A |
| Secondary Voltage | 208V |
| Secondary Amperage | 416.36A |
| Maximum Primary OCP | 600A |
| Frequency | 50/60 Hz |
| Insulation | 180°C |
| Temperature Rise | 115°C |
| Transformer Type | Buck/Boost |
| Part # | TX-BB-202D-208D-150KVA |
| Configuration | Encapsulated Autotransformer |
| Primary Termination | Lead Wires & Terminal Lugs |
| Secondary Termination | Lead Wires & Terminal Lugs |
| Termination Access | (6) ¾" NPT Hubs |
| Winding Material | Aluminum |
| Enclosure Material | Steel |
| Finish Color | ANSI 70 Light Grey |
| Weatherproof Rating | NEMA 3R |
| Certification Listing | cETLus |
| Dimensions (W×H×D) | 7.68 × 12.2 × 6.38 in |
| Weight | 102 lb |
Product Description
The TX-BB-202D-208D-150KVA is a 150 kVA three-phase buck-boost transformer that boosts a 202V supply to 208V — a 3% voltage correction — bringing 208V-rated equipment back into its proper operating range. Wired as an encapsulated booster transformer (autotransformer), it carries only the correction portion of the load, so this unit corrects a much larger connected load: up to 416.36A at 208V (150 kVA usable line capacity).

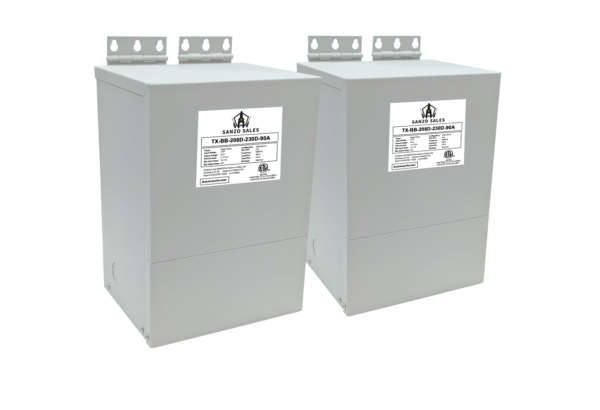

Resin-encapsulated in a NEMA 3R steel enclosure (ANSI 70 light grey) for indoor or outdoor mounting at the disconnect. Lead wires and terminal lugs, aluminum windings, 180°C insulation system, 115°C rise, 50/60 Hz, cETLus listed. Supplied as a two-unit open-delta bank for three-phase delta service. In-stock units ship the same business day.
