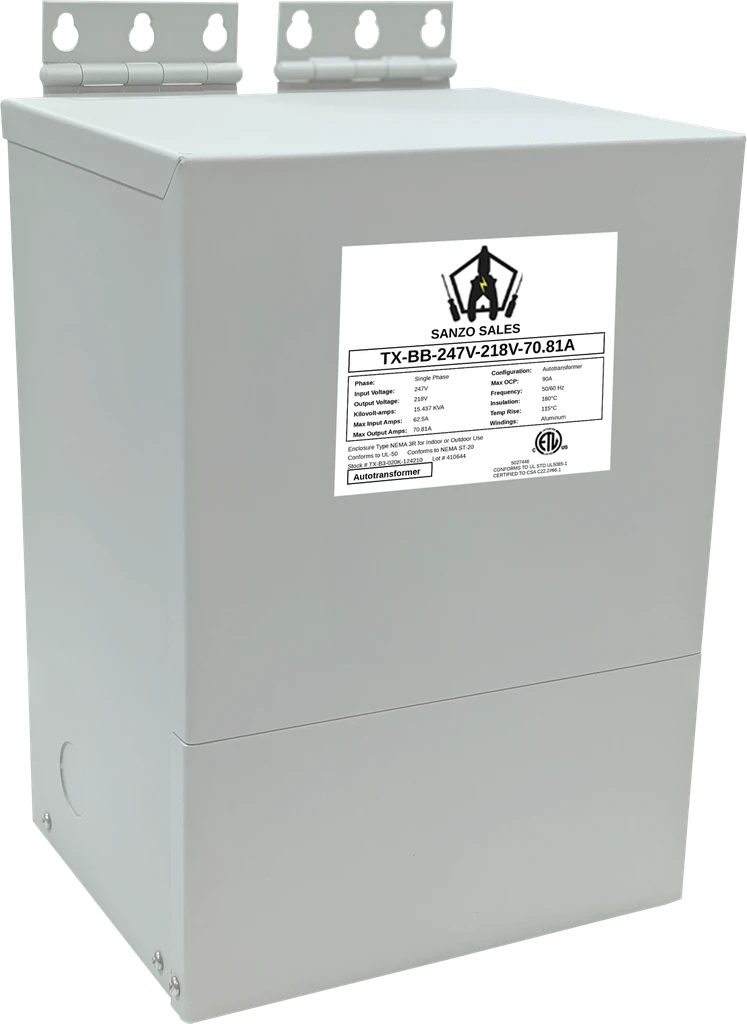

15.44 kVA Step-Down Buck-Boost Transformer, 247V → 218V, 70.81A, Single Phase
$1,361.24
15.44 kVA single-phase buck-boost that bucks 247V to 218V (12% correction) at 70.81A. Encapsulated NEMA 3R, cETLus listed. In-stock ships same business day.
✔ In Stock: 47
Specifications
| Brand | Sanzo Sales |
| Phase | Single Phase (1-PH), AC |
| Capacity | 15.44 kVA |
| Primary Voltage | 247V |
| Primary Amperage | 62.51A |
| Secondary Voltage | 218V |
| Secondary Amperage | 70.81A |
| Maximum Primary OCP | 80A |
| Frequency | 50/60 Hz |
| Insulation | 180°C |
| Temperature Rise | 115°C |
| Transformer Type | Buck/Boost |
| Part # | TX-BB-247V-218V-70.81A |
| Configuration | Encapsulated Autotransformer |
| Primary Termination | Lead Wires & Terminal Lugs |
| Secondary Termination | Lead Wires & Terminal Lugs |
| Termination Access | (6) ¾" NPT Hubs |
| Winding Material | Aluminum |
| Enclosure Material | Steel |
| Finish Color | ANSI 70 Light Grey |
| Weatherproof Rating | NEMA 3R |
| Certification Listing | cETLus |
| Dimensions (W×H×D) | 7.68 × 11.02 × 6.38 in |
| Weight | 42 lb |
Product Description
The TX-BB-247V-218V-70.81A is a 15.44 kVA single-phase buck-boost transformer that bucks a 247V supply to 218V — a 12% voltage correction — bringing 218V-rated equipment back into its proper operating range. Wired as an encapsulated buck transformer (autotransformer), it carries only the correction portion of the load, so this unit corrects a much larger connected load: up to 70.81A at 218V (15.44 kVA usable line capacity).
Resin-encapsulated in a NEMA 3R steel enclosure (ANSI 70 light grey) for indoor or outdoor mounting at the disconnect. Lead wires and terminal lugs, aluminum windings, 180°C insulation system, 115°C rise, 50/60 Hz, cETLus listed. Use two units in open-delta for three-phase delta systems, three for wye. In-stock units ship the same business day.
