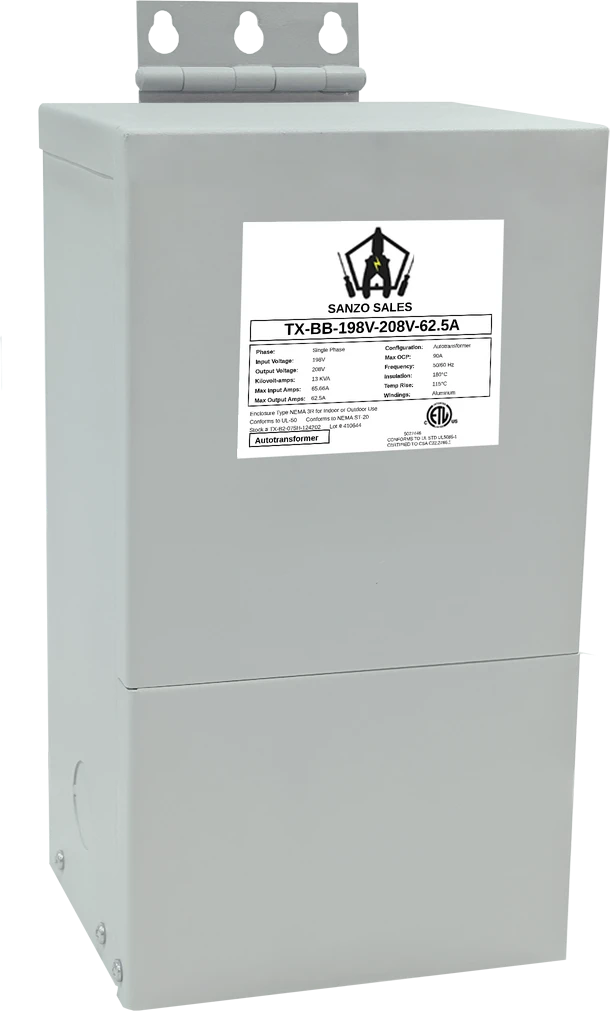

13 kVA Step-Up Buck-Boost Transformer (Booster), 198V → 208V, 62.5A, Single Phase
$548.93
13 kVA single-phase buck-boost booster that boosts 198V to 208V (5% correction) at 62.5A. Encapsulated NEMA 3R, cETLus listed. In-stock ships same business day.
✔ In Stock: 12
Specifications
| Brand | Sanzo Sales |
| Phase | Single Phase (1-PH), AC |
| Capacity | 13 kVA |
| Primary Voltage | 198V |
| Primary Amperage | 65.66A |
| Secondary Voltage | 208V |
| Secondary Amperage | 62.5A |
| Maximum Primary OCP | 90A |
| Frequency | 50/60 Hz |
| Insulation | 180°C |
| Temperature Rise | 115°C |
| Transformer Type | Buck/Boost |
| Part # | TX-BB-198V-208V-62.5A |
| Configuration | Encapsulated Autotransformer |
| Primary Termination | Lead Wires & Terminal Lugs |
| Secondary Termination | Lead Wires & Terminal Lugs |
| Termination Access | (6) ¾" NPT Hubs |
| Winding Material | Aluminum |
| Enclosure Material | Steel |
| Finish Color | ANSI 70 Light Grey |
| Weatherproof Rating | NEMA 3R |
| Certification Listing | cETLus |
| Dimensions (W×H×D) | 5.43 × 10.08 × 4.49 in |
| Weight | 22 lb |
Product Description
The TX-BB-198V-208V-62.5A is a 13 kVA single-phase buck-boost transformer that boosts a 198V supply to 208V — a 5% voltage correction — bringing 208V-rated equipment back into its proper operating range. Wired as an encapsulated booster transformer (autotransformer), it carries only the correction portion of the load, so this unit corrects a much larger connected load: up to 62.5A at 208V (13 kVA usable line capacity).
Resin-encapsulated in a NEMA 3R steel enclosure (ANSI 70 light grey) for indoor or outdoor mounting at the disconnect. Lead wires and terminal lugs, aluminum windings, 180°C insulation system, 115°C rise, 50/60 Hz, cETLus listed. Use two units in open-delta for three-phase delta systems, three for wye. In-stock units ship the same business day.
