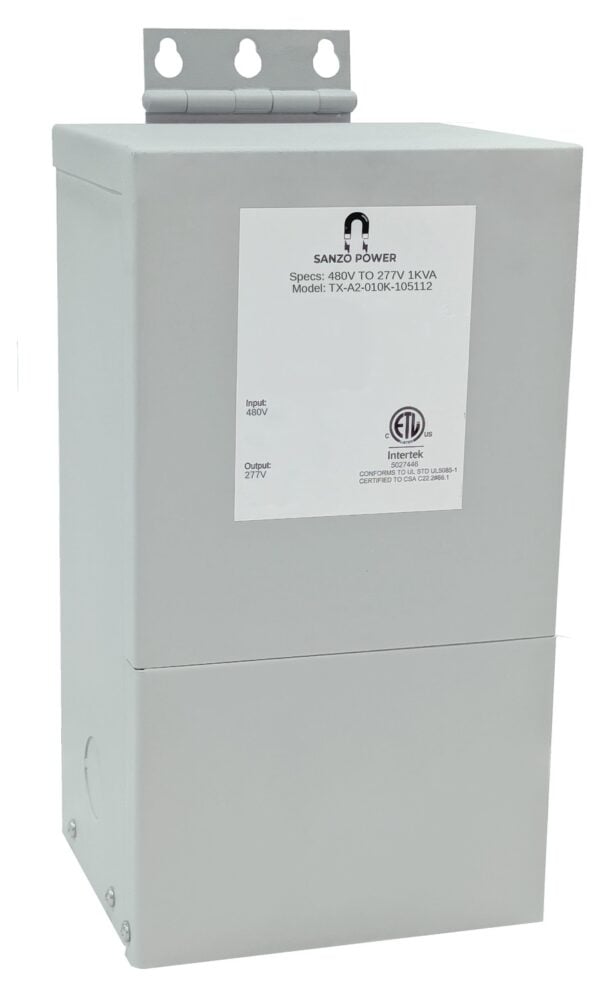

1 KVA Encapsulated General Purpose Transformer – 480V to 277V – Single Phase, NEMA 3R
by Sanzo Power · Part # TX-A2-010K-105112
Sanzo Power 1 KVA single-phase encapsulated general purpose transformer, 480V primary / 277V secondary. Resin encapsulated, NEMA 3R. ETL Listed (UL 1561), cUL, CE, RoHS.
Pricing and lead times from this manufacturer are fluctuating right now, so we're confirming every order by quote. Request a quote and we'll verify current pricing and availability — usually within the hour.
Quotes include a link to approve and pay online — no phone call needed.
Specifications
| Brand | Sanzo Power |
| Capacity | 1 kVA |
| Primary Voltage | 480V |
| Secondary Voltage | 277V |
| Phase | Single Phase |
| Primary Amps | 2.1A |
| Part # | TX-A2-010K-105112 |
| Secondary Amps | 3.6A |
| Weatherproof Rating | NEMA 3R |
| Dimensions (W×H×D) | 5.43 × 10.08 × 4.49 in |
| Weight | 27 lb |
