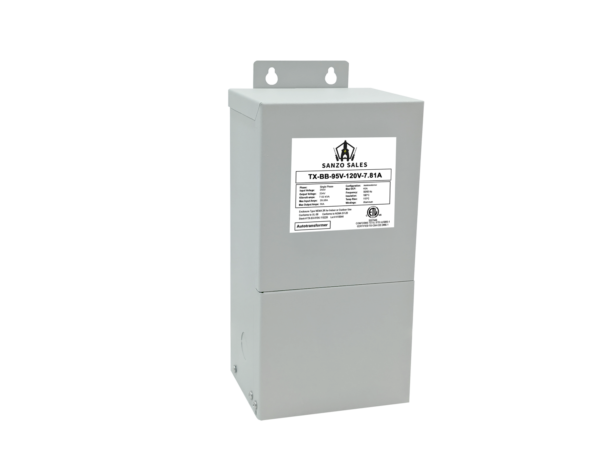

0.94 kVA Step-Down Buck-Boost Transformer, 95V → 120V, 7.81A, Single Phase
$309.01
0.94 kVA single-phase buck-boost that bucks 95V to 120V (26% correction) at 7.81A. Encapsulated NEMA 3R, cETLus listed. In-stock ships same business day.
✔ In Stock: 26
Specifications
| Brand | Sanzo Sales |
| Phase | Single Phase (1-PH), AC |
| Capacity | 0.94 kVA |
| Primary Voltage | 95V |
| Primary Amperage | 9.9A |
| Secondary Voltage | 120V |
| Secondary Amperage | 7.81A |
| Maximum Primary OCP | 15A |
| Frequency | 50/60 Hz |
| Insulation | 180°C |
| Temperature Rise | 115°C |
| Part # | TX-BB-95V-120V-8A |
| Transformer Type | Buck/Boost |
| Configuration | Encapsulated Autotransformer |
| Primary Termination | Lead Wires & Terminal Lugs |
| Secondary Termination | Lead Wires & Terminal Lugs |
| Termination Access | (6) ¾" NPT Hubs |
| Winding Material | Aluminum |
| Enclosure Material | Steel |
| Finish Color | ANSI 70 Light Grey |
| Weatherproof Rating | NEMA 3R |
| Certification Listing | cETLus |
Product Description
The TX-BB-95V-120V-8A is a 0.94 kVA single-phase buck-boost transformer that bucks a 95V supply to 120V — a 26% voltage correction — bringing 120V-rated equipment back into its proper operating range. Wired as an encapsulated buck transformer (autotransformer), it carries only the correction portion of the load, so this unit corrects a much larger connected load: up to 7.81A at 120V (0.94 kVA usable line capacity).
Resin-encapsulated in a NEMA 3R steel enclosure (ANSI 70 light grey) for indoor or outdoor mounting at the disconnect. Lead wires and terminal lugs, aluminum windings, 180°C insulation system, 115°C rise, 50/60 Hz, cETLus listed. Use two units in open-delta for three-phase delta systems, three for wye. In-stock units ship the same business day.
